uim204
The following Microsoft SQL Server versions are supported:
2014
2016
2017
2019
The following diagram shows the high-level process:
TLS v1.2 support is not enabled by default when you install DX UIM
For information about the supported CABI versions, see CABI Support Matrix.
Configurations on Database Server
Perform the following tasks on the database server.
Verify Fully Qualified Domain Name (FQDN) Requirement
Verify and Apply Patches for Microsoft SQL Server
Disable Previous Versions of Certificates
Import the Certificate to Database Server
Grant SQL Server Rights to Use the Certificate
Enable Encryption on Database Server
Export the Certificate on Database Server
Verify FQDN Requirement
Verify that your full computer name is FQDN (for example, VI02-E74.ca.com). If not, add the domain name (for example, ca.com) to the computer name.
Follow these steps:
Access the properties panel of your computer (for example, right-click the Computer icon on your desktop and select
Properties
).Click
Advanced system settings
in the left pane.Click the
Computer Name
tab.Click
Change
.Click
More
.Enter your domain name in the
Primary DNS suffix of this computer
field.Click
OK
and restart the computer.Verify that your full computer name is now FQDN.
The following example screenshot shows that the full computer name is FQDN:
Verify and Apply Patches for Microsoft SQL Server
For Microsoft SQL Server versions that do not provide support for TLS v1.2 by default, follow the information in the article TLS 1.2 support for Microsoft SQL Server. By following the instructions in this article, you can download and apply the required packages depending on your Microsoft SQL Server version. For Microsoft SQL Server versions (for example, 2016) that support TLS v1.2 by default, you do not need to perform this manual process.
Disable Previous Versions of Certificates
Change the registry keys to disable all the previous versions of certificates on the database server. Verify the following registry keys on the database server:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server
For the Client and Server entries, enter the following DWord and Value entries:
DisabledByDefault=00000000
Enabled=00000001
For more information, see the TLS 1.2 section on TLS/SSL Settings.
Import the Certificate to Database Server
(For certification authority-approved certificates) Use Internet Information Services (IIS) to import the CA-approved certificate to the database server. Ensure that you have the required certificate available with you.
Install IIS on the database server if it is not already installed.
Follow these steps:
Click Start, Run, and enter inetmgr to open IIS.
Click
<server_name>
.Locate and double-click
Server Certificates
as shown in the following example screenshot:
Right-click in the right pane and select
Import
from the context menu.The
Import Certificate
dialog opens.Navigate to the location where your certificate file is available.
Enter the required password.
Click
OK
.

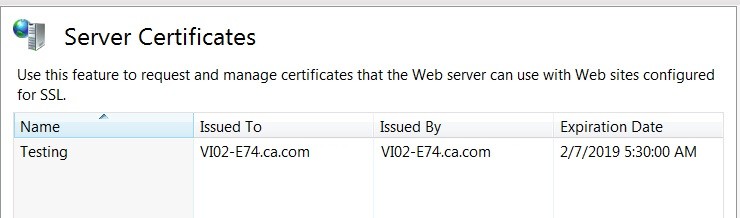

The certificate is imported to the database server. The following example screenshot shows an imported certificate:
When using certificates, the certificate must be issued to FQDN (Fully Qualified Domain Name) of the computer, not the host name. Also, ensure that the database server name must also be FQDN. If both the certificate and the server name are not FQDN, you will encounter connection issues.
The import procedure that is explained above is not required for self-signed certificates. When you create self-signed certificates using IIS, they become available in IIS. Therefore, you do not need to perform this import process.
Create Self-Signed Certificates Using IIS
Review the following steps if you want to create a self-signed certificate using IIS:
Verify that your full computer name is FQDN (for example, sa-01.ca.com). If not, follow the steps that are mentioned in the System Requirements section.
Click Start, Run, and enter inetmgr to open IIS.
Click
<server_name>
.Locate and double-click
Server Certificates
.Right-click in the right pane and select Create Self-Signed Certificate from the context menu.
Enter the FQDN name (for example,
<computer_name>
.ca.com) for the certificate.Click
See AlsoHow to know which versions of TLS is/are enabled on Windows Server 2019? - Microsoft Q&Ahow to check if TLS 1.0 is being used on a server.OK
.
The self-signed certificate is created and is listed in the
Server Certificates
pane.Grant SQL Server Rights to Use the Certificate
You must provide the SQL Server rights to use the certificate. You use SQL Server Configuration Manager and Microsoft Management Console to perform this task.
Follow these steps:
Open SQL Server Configuration Manager.
Locate and select
SQL Server Services
in the left pane.Select your SQL Server instance in the right pane.
Right-clickSQL Server instance and select
Properties
from the context menu as shown in the following screenshot:Copy the account name entry present in the
Account Name
field.Open the Microsoft Management Console (MMC).
Click
File,Add/Remove Snap-in
.Click
Certificates
.Click
Add
as shown in the following example screenshot:Select
Computer account
.Click
Next
.Select the local computer option.
Click
Finish
.Click
OK
.Locate and select the certificate.
Right-click the certificate, select
All Tasks, Manage Private Keys
from the context menu.Add the copied account name.
Grant the Read access to the account name.
Enable Encryption on Database Server
Use theSQL Server Configuration Manager to enable the encryption on the database server.
Follow these steps:
Open SQL Server Configuration Manager.
Locate and expand
SQL Server Network Configuration
.Right-click on
Protocols for
<SQL_Server>
and selectProperties
from the context menu as shown in the following example screenshot:Click the
Certificate
tab.Select the required certificate from the
Certificate
drop-down list.Click the
Flags
tab.Select
Yes
for theForced Encryption
option as shown in the following example screenshot:Click
OK
.Restart the SQL Server service.
The encryption is enabled on the database server for the certificate.
Export the Certificatefrom Database Server
(For self-signed certificates) Export the self-signed certificate to the database server so that the DX UIM DX UIM
You do not need to perform this task in case of CA-approved certificates because the certificate file is already available.
Follow these steps:
Open the Microsoft Management Console (MMC).
Click
File,Add/Remove Snap-in
.Click
Certificates
.Click
Add
.Select
Computer account
.Click
Next
.Select the local computer option.
Click
Finish
.Click
OK
.Locate the certificate.
Right-click the certificate and select
All Tasks, Export
from the context menu as shown in the following screenshot:Click
Next
on the Certificate Export Wizard.Follow the required selections for
Base-64 encoded X.509 (.CER)
and specify the location where you want to save the exported file. The location must be accessible to theDX UIM
Server (client computer).
The self-signed certificate is successfully exported to a location on the database server that is accessible to the DX UIM
You have successfully configured your DX UIM
Configurations on DX UIM
Perform the following tasks on the client ( DX UIM
Import the Certificate on
DX UIM
ServerCreate Java KeyStore for Server Certificate
Install
DX UIM
Server
Import the Certificate on DX UIM
Import the certificate on the DX UIM DX UIM DX UIM
Follow these steps:
Open the Microsoft Management Console (MMC).
Click
File, Add/Remove Snap-in
.Select
Certificates
and clickAdd
.Select
Computer account
.Select the local computer option.
Click
Finish
.Click
OK
.Click
Certificates (Local Computer)
.Navigate to the
Trusted Root Certification Authorities
folder.Right-click the
Trusted Root Certification Authorities
folder and selectAll Tasks, Import
from the context menu as shown in the following screenshot:Click
Next
on the Certificate Import Wizard.Click
Browse
and navigate to the location where you saved the certificate file.Click
Next
.Verify that
Trusted Root Certification Authorities
is selected as the place to store all certificates.Click
Finish
.Click
OK
.
The certificate is imported on the DX UIM
You must also import the certificate onto the robot where CABI is available. After the import, deactivate and activate CABI.
Create a .jks File for Server Certificate
You also need to create a .jks file (Java keystore file) on the DX UIM
You specify the location of the generated .jks file during the DX UIM DX UIM
Follow these steps:
Ensure that JRE (jre1.8.00) is installed on the computer.
Specify the JRE location in the
PATH
environment variable; for example,C:\Program Files\Java\jre1.8.0_131\bin;
Run the following command using the .cer certificate to generate the .jks file:
Syntax:
keytool -import -alias <alias_name> -file <certificate_file> -keystore <jks_filename> -storepass <password>
Example:
C:\keytool -import -alias sa-01.ca.com -file sa-01.ca.com.cer -keystoresa-01.ca.com.jks -storepass Abc@123
Enter
yes
when prompted whether you want to trust the certificate.The .jks file is created.
This command uses the following options:
-file
Specifies the location where the source certificate file is available.
-keystore
Specifies the location where you want to save the .jks file that gets created when the command is executed successfully.
-storepass
Specifies the password for the .jks file.
-alias
Specifies the alias name, which is the database server name (FQDN) in this case.
If your certification authority (CA) provides you a .p12 file, you can use the following command to import it into the .jks file:
Syntax:
keytool -importkeystore -srckeystore <certificate_filename> -srcstoretype <type> -srcstorepass <password> -destkeystore <jks_filename> -deststorepass <password> -alias <alias_name>
Example:
C:\keytool -importkeystore -srckeystore sa01-i185.ca.com.p12-srcstoretype PKCS12-srcstorepassAbc@123 -destkeystore sa01-i185.ca.com.jks -deststorepass Abc@123 -alias sa01-i185.ca.com
The command uses the following options:
-srckeystore
Specifies the location where the self-signed or CA-approved certificate file is available.
-srcstoretype
Specifies the source type.
-srcstorepass
Specifies the password that is associated with the source certificate file.
-destkeystore
Specifies the location where you want to save the .jks file that gets created when the command is executed successfully.
-deststorepass
Specifies the password for the .jks file.
-alias
Specifies the alias name, which is the database server name (FQDN) in this case.
The certificate name and database server name must be FQDN.
Before you deploy CABI external version 3.4 on a secondary robot, copy the Java keystore file (truststore.jks) file from the
DX UIM
Server (<Nimsoft>\security)to the CABI External secondary robot (<Nimsoft>\security).
Install DX UIM
After you perform all the tasks that are listed in this section, review the other pre-installation planning tasks. You can then start the DX UIM DX UIM <Nimsoft>\security
For more information about the DX UIM
Enable TLS
,Trust Store Path
, andTrustStore Password
) during theDX UIM
Server installation:
The TLS v1.2-related options are as follows:
Enable TLS:
Select the option to enable TLS v1.2 inDX UIM
, which lets theDX UIM
Server establish a secure communication with theDX UIM
database (Microsoft SQL Server in this case).Trust Store Path:
Specify the location of the generated .jks file. TheDX UIM
Server installer copies the .jks file from the specified location and places it in the<Nimsoft>\security
folder during the installation. The installer then renames the copied file totruststore.jks
. This file includes your database server certificate.TrustStore Password:
Specify the password to access the source .jks file.
You have successfully enabled the TLS v1.2 support, which allows a secure communication with the DX UIM
Additional Information
Review the following additional information:
In upgrade scenarios and in situations where you want to enable TLS v1.2 support after the
DX UIM
Server installation, perform the following tasks on theDX UIM
Server:Verify and install the required driver (SQLNCLI11), if necessary.
For more information, follow the information in the "Client component downloads" section of the TLS 1.2 support for Microsoft SQL Server article.
DX UIM 20.4 CU4 supports theMSOLEDBSQLdriver provided along with the DX UIM CU4 installer. TheMSOLEDBSQLdriver is automatically installed when you install DX UIM.
Import the server certificate as a trusted certificate.
Create the Java KeyStore.
Use thedata_engine Admin Console or Infrastructure Manager to configure the TLS v1.2-related parameters. When specifying the .jks file location, browse to the location where you have created the .jks file. When you click
Apply
orOK
, the .jks file is copied to the<Nimsoft>\security
folder as truststore.jks. This location is then displayed in theTrust Store File (.jks)
field.When you click theTest Connection
option,DX UIM
does not verify the validity of the specified .jks file. Instead, it verifies the validity of the certificate that you have imported into the Microsoft Management Console (MMC) on theDX UIM
Server.After you specify the options, restart the data_engine probe. The data_engine probe is successfully configured to support TLSv1.2. You can now deploy other probes and use secure communication when interacting with the
DX UIM
database (Microsoft SQL Server). Also, review the impactedprobes and packageslist. These items have been updated to support TLS v1.2. Ensure that you use the latest version of these items if you want them to work in the TLS v1.2 environment.Ensure that the ppm probe version is 3.48 or later and robot version is 7.96 or later to display TLS v1.2 configuration options in Admin Console. Otherwise, TLS v1.2 options are not displayed in Admin Console.
The following screenshot shows the TLS v1.2 configuration options (
Enable TLS
,Trust Store File (.jks)
,Trust Store Password
,Always Trust Server Certificate
) in Admin Console:
For upgrade scenarios, the
DX UIM
system can be either TLS v1.2 enabled or disabled for all components; it cannot be a partial TLS v1.2-enabled system. That is,all the infrastructure components across layers (for example, primary hub, secondary hub, probes) should be upgraded to a TLS v1.2-supported version.You can enable or disable the TLSv1.2 mode by configuring the data_engine UI.Also, restart of data_engine is needed whenever TLS v1.2 mode is changed.
If you upgrade from a previous version of
DX UIM
to this version, the state of the system remains in non-TLS v1.2 mode. To enable TLS v1.2 mode, perform all the required manual steps that are mentioned above and use the data_engine UI to enable TLS v1.2.When you want to update a certificate (for example, older certificate has expired), create a new .jks file and specify the location of the .jks file and its password in the data_engine UI. The data_engine probe uses that information to create thetruststore.jksfile in the same
<Nimsoft>\security
folder.To run probes that can work on remote computers (other than the primary hub) in TLS v1.2 environment, install the required driver (SQLNCLI11) on the remote computers. For more information, follow the information in the "Client component downloads" section in the article TLS 1.2 support for Microsoft SQL Server.
If you encounter any database-connectivity issue in a TLS v1.2-enabled environment, the most probable reason for this issue might be that your certificate is not using FQDN.
Probes and Packages Updated for TLS v1.2
TLS v1.2-related updates have been made to the following artifacts so that they can work in a TLS v1.2 environment. The minimum version of the artifacts is as follows:
ace 9.03
The ace probe was deprecated in20.3.3.
alarm_routing_service 10.20
apmgtw 3.20
audit 9.03
axagateway 1.32
cisco_ucm 2.00
cm_data_import 9.02
data_engine 9.02
discovery_agent 9.02
discovery_server 9.02
ems 10.20
hub 7.96
maintenance_mode 9.02
mon_config_service 9.02
mpse 9.03
nas 9.03
nis_server 9.03
qos_processor 9.02
robot 7.96
sla_engine 9.02
telemetry 1.20
trellis 9.02
udm_manager 9.02
usage_metering 9.11
wasp 9.02
webservices_rest 9.02
Troubleshooting
The following topics help you troubleshoot a few TLS v1.2-related issues:
data_engine Fails to Start When TLS v1.2 is Enabled
Symptom:
When I try to start data_engine after enabling the TLS v1.2 mode, I get the following connection error:
May 1 10:10:21:897 [4068] 0 de: [main] Open - 3 errorsMay 1 10:10:21:897 [4068] 0 de: (1) Open [Microsoft SQL Server Native Client 11.0] Invalid connection string attribute
May 1 10:10:21:897 [4068] 0 de: (2) Open [Microsoft SQL Server Native Client 11.0] SSL Provider: The target principal name is incorrect.
May 1 10:10:21:897 [4068] 0 de: (3) Open [Microsoft SQL Server Native Client 11.0] Client unable to establish connection
May 1 10:10:21:897 [4068] 0 de: COM Error [0x80004005] Unspecified error - [Microsoft SQL Server Native Client 11.0] Invalid connection string attributeMay 1 10:10:21:897 [4068] 1 de: Database script - processing 3 database scripts
How can I address this issue?
Solution:
Your data source uses FQDN for connecting to the database server in the data_engine configuration, but your certificate is not created with FQDN. In such scenarios, the certificate validation fails.Ensure that both the database server name and the certificate use FQDN.Self-Signed SSL Certificate for Microsoft SQL Server Fails to Validate
Symptom:
I used self-signed certificate the local KeyStore, but I received the following error:
2018-04-30 15:12:15,379 ERROR
dbconfig.UIMServerDatabaseConfigBaseParamsPanel:processTestDBAccess:152 [AWT-EventQueue-0] -
Failed to connect to database server with provided field values. Recheck fields for accuracy.
The driver could not establish a secure connection to SQL Server by using Secure Sockets Layer
(SSL) encryption. Error: "java.security.cert.CertificateException: Failed to validate the server
name in a certificate during Secure Sockets Layer (SSL) initialization.".
ClientConnectionId:89ef826a-2460-4faa-a1a8-d8aba2fc28f2 (501) , Failed to connect to database
server with provided field values. Recheck fields for accuracy.
How can I resolve this issue?
Solution:
This issue is the same as described in the first troubleshooting topic "data_engine Fails to Start When TLS v1.2 is Enabled". Therefore, follow the same solution of ensuring that thedatabase server name and the certificate use FQDN.
